<h3 style="white-space:pre-line">VHF/UHF RF Switch Matrix</h3>

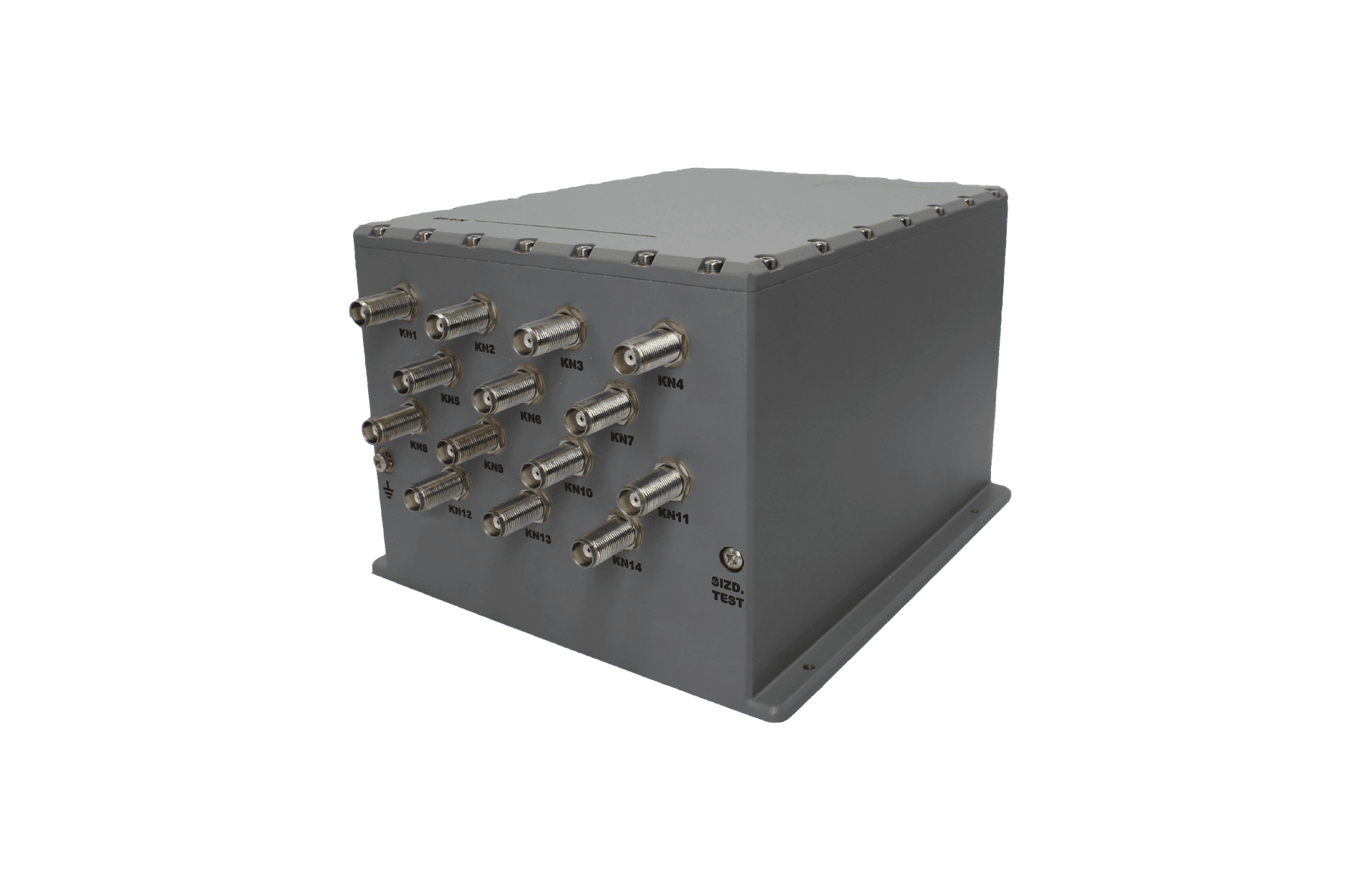

TRDF-3000-7-14 is a wideband RF switching matrix engineered for advanced direction-finding (DF) systems and RF monitoring applications. Covering a 20–3000 MHz operating range, it offers 14 antenna inputs, 7 outputs, and a flexible switchable calibration signal that can be routed to any output. With its switchable low-noise amplifier, the unit delivers wide dynamic range, exceptional noise performance, strong intermodulation suppression, and superior port-to-port isolation. Qualified to DO-160G standards, the TRDF-3000-7-14 is purpose-built for demanding airborne platforms, ensuring reliable performance in mission-critical environments.
Features:
<ul style="list-style-type:circle">
<li>2 sub-bands 14 Antenna Inputs: (7 × 20–500 MHz, 7 × 500-3000 MHz) for max. selectivity</li>
<li>Switchable RF amplifiers and filters</li>
<li>Surge and overvoltage protection on each RF port</li>
<li>High Port-to-Port Isolation: Ensures minimal crosstalk between outputs</li>
<li>RF Blanking</li>
<li>Compliant with DO-160G</li>
</ul>
Applications:
SIGINT, COMINT, Electronic Warfare
