<h3 style="white-space:pre-line">Ultra-Broadband 6GHz RF Switch Matrix</h3>

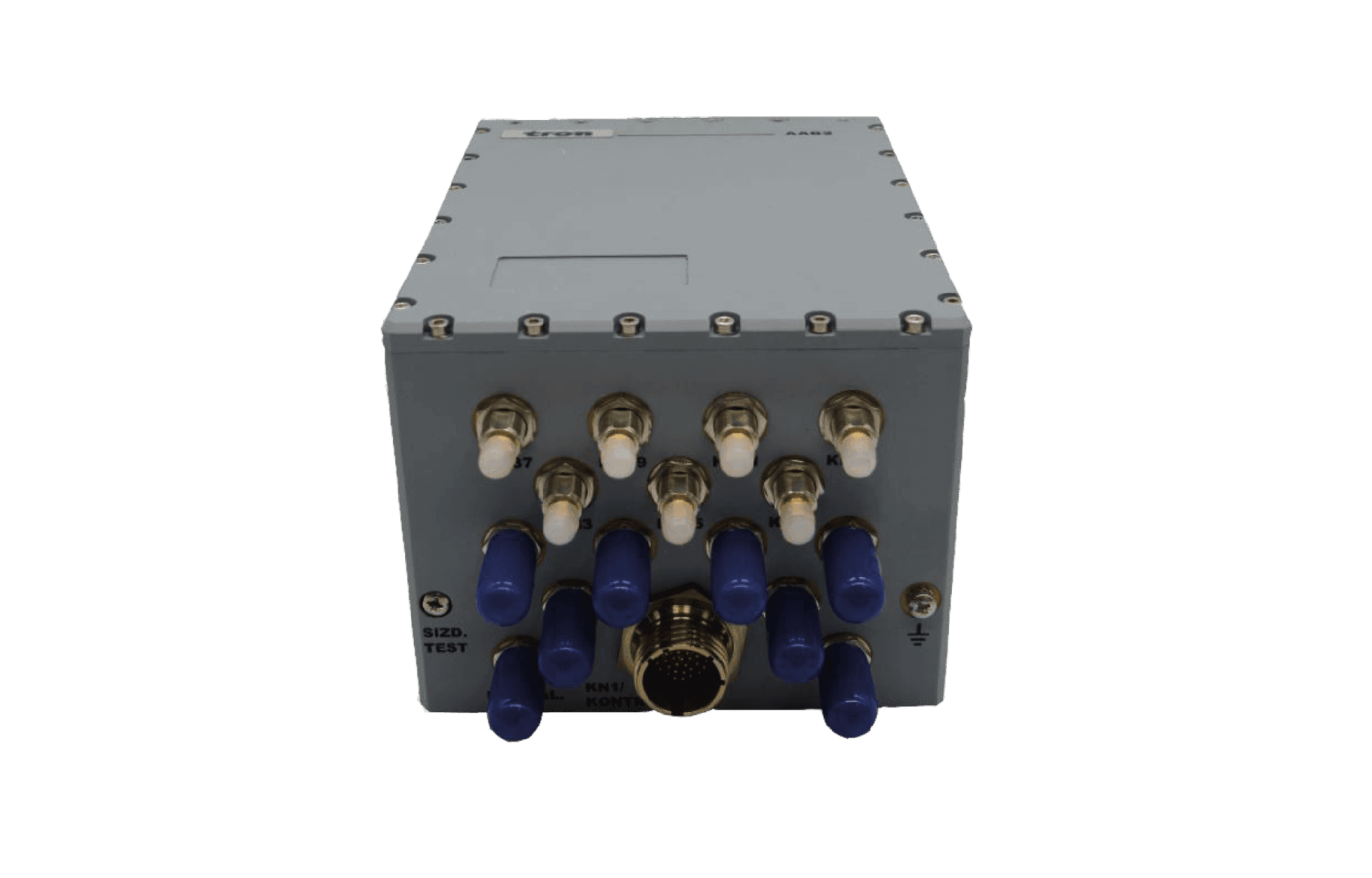

TRDF-6000-7-28 is a high-performance ultra-broadband hybrid RF switch matrix and multicoupler designed for Direction Finding (DF) systems and RF monitoring applications. Operating across 30–6000 MHz frequency range, it features 28 customized antenna input ports and 7 output ports, with a dedicated calibration signal routable to all outputs. The unit is housed in a custom ruggedized enclosure fully compliant with MIL-STD-810G environmental standards, ensuring reliable operation in harsh naval environments.
Features:
<ul style="list-style-type:circle">
<li>4 sub-bands covering 30-6000MHz range for ultimate selectivity</li>
<li>Single calibration signal non-blocking switching to RF outputs</li>
<li>Switchable RF amplifiers &amp; filters per each channel</li>
<li>Surge and high ambient protection at each RF port</li>
<li>Remote control is available via TTL interface</li>
<li>Compliant with MIL-STD-461E and MIL-STD-810G</li>
</ul>
Applications:
SIGINT, COMINT, Electronic Warfare
