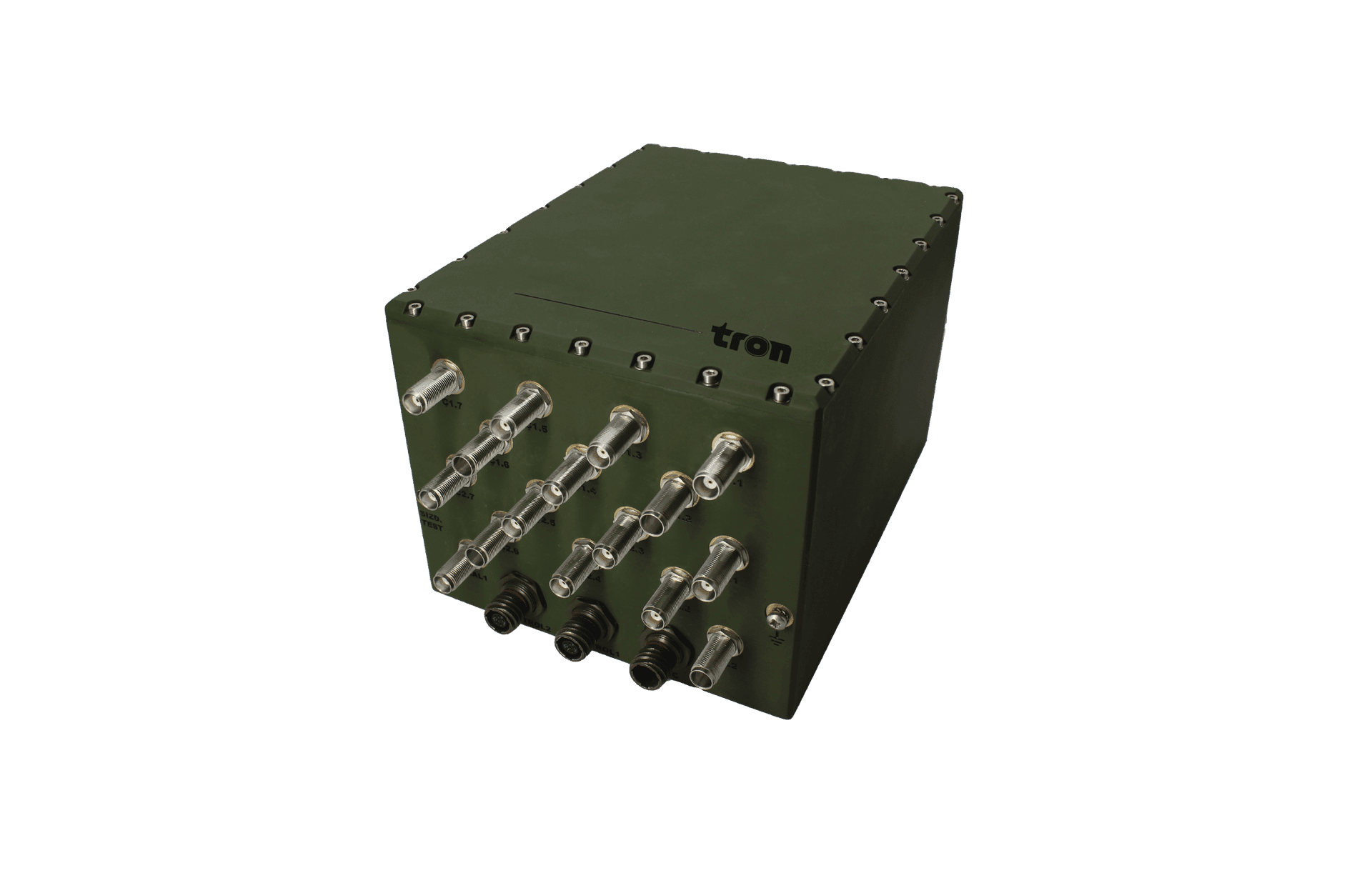

Ultra-Broadband 8GHz RF Switch Matrix

TRDF-8000-14-28, is a high-performance, ultra-broadband 8 GHz RF matrix switch designed to route multiple-branded antenna inputs to 14 wideband receivers for Direction Finding (DF) and RF monitoring applications. Operating across the 20–8000 MHz range, it features 28 RF inputs and 14 RF outputs. Built to stringent military standards, it ensures reliable performance in demanding and harsh environments.

A switchable low-noise input amplifier provides a wide dynamic range across the entire frequency band. The unit delivers a low noise figure, high intermodulation suppression, and excellent port-to-port isolation. Remote TTL control allows complete switch-matrix configuration and per-port preamplifier activation.

Features:

• RF Inputs: 3 sub-bands covering 20–8000 MHz for maximum selectivity
• Switchable RF amplifiers and filters
• Surge and overvoltage protection on each RF port
• High Port-to-Port Isolation: Ensures minimal crosstalk between outputs
• Compliant with MIL-STD-461F and MIL-STD-810G

Applications:

SIGINT, COMINT, Electronic Warfare
