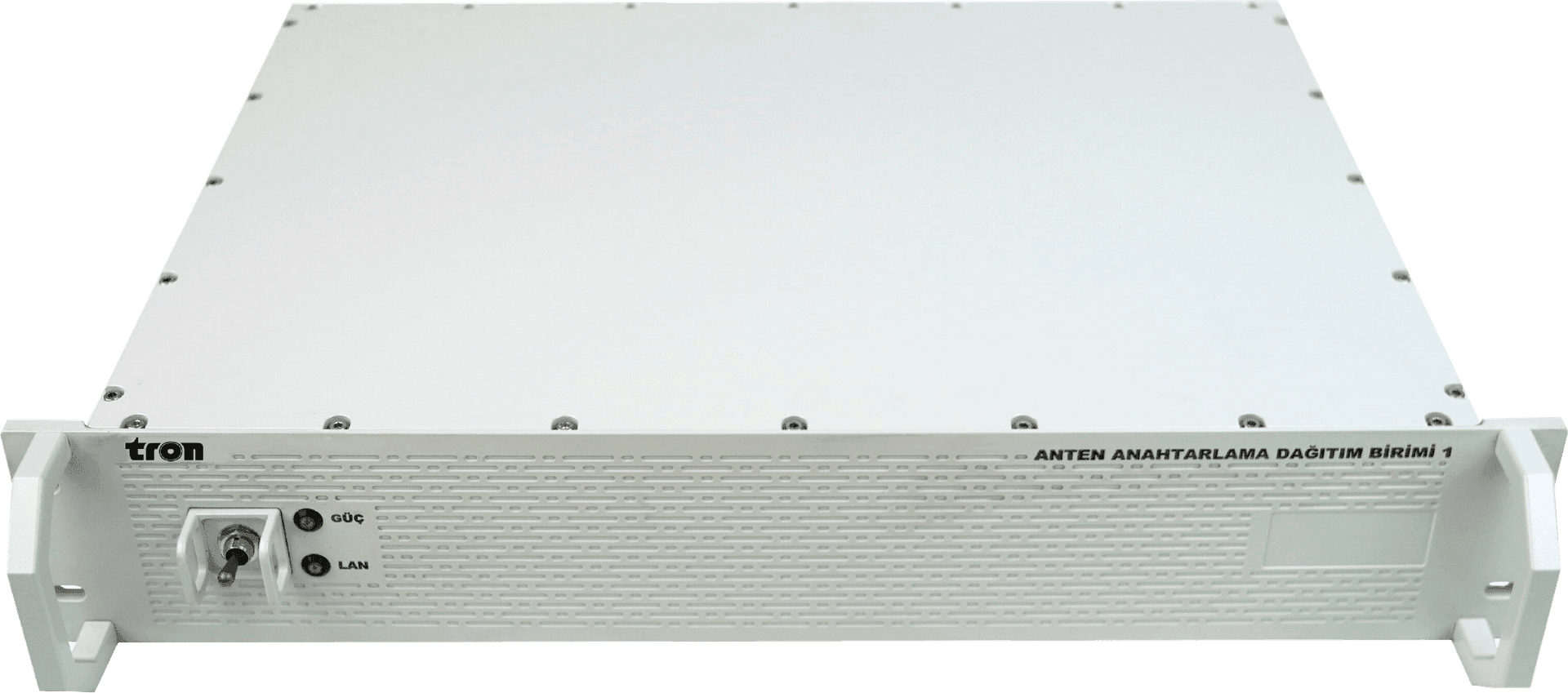

<h3 style="white-space:pre-line">HF Hybrid RF Switch Matrix &amp; Multicoupler</h3>
TRFMC-30-8-3 is a high-performance VHF/UHF hybrid RF switch matrix and multicoupler for Direction Finding (DF) and RF monitoring. Operating in the 2–30 MHz band, it routes three antenna inputs to eight HF receivers with controlled insertion loss and stable performance.
Ruggedized to meet military standards, it ensures reliable operation in harsh environments. Integrated 47 dBm RF limiters on all ports protect against strong interference, enabling use near high-power transmitters.
The network-enabled Built-In Test Equipment (BIT) system allows continuous remote monitoring of internal voltages, antenna ports, and temperatures. The unit delivers low noise figure, high intermodulation suppression, and excellent port-to-port isolation, with remote TCP/IP control for full matrix configuration and per-port amplifier/filter activation.
Features:
<ul style="list-style-type:circle">
<li>3 antenna inputs, 8 RF outputs</li>
<li>Surge and overvoltage protection on each RF por</li>
<li>RF blanking option</li>
<li>Compliant with MIL-STD-461E and MIL-STD-810F</li>
<li>19-inch EIA housing with superior EMI shielding</li>
</ul>
Applications:
SIGINT, COMINT, Electronic Warfare
