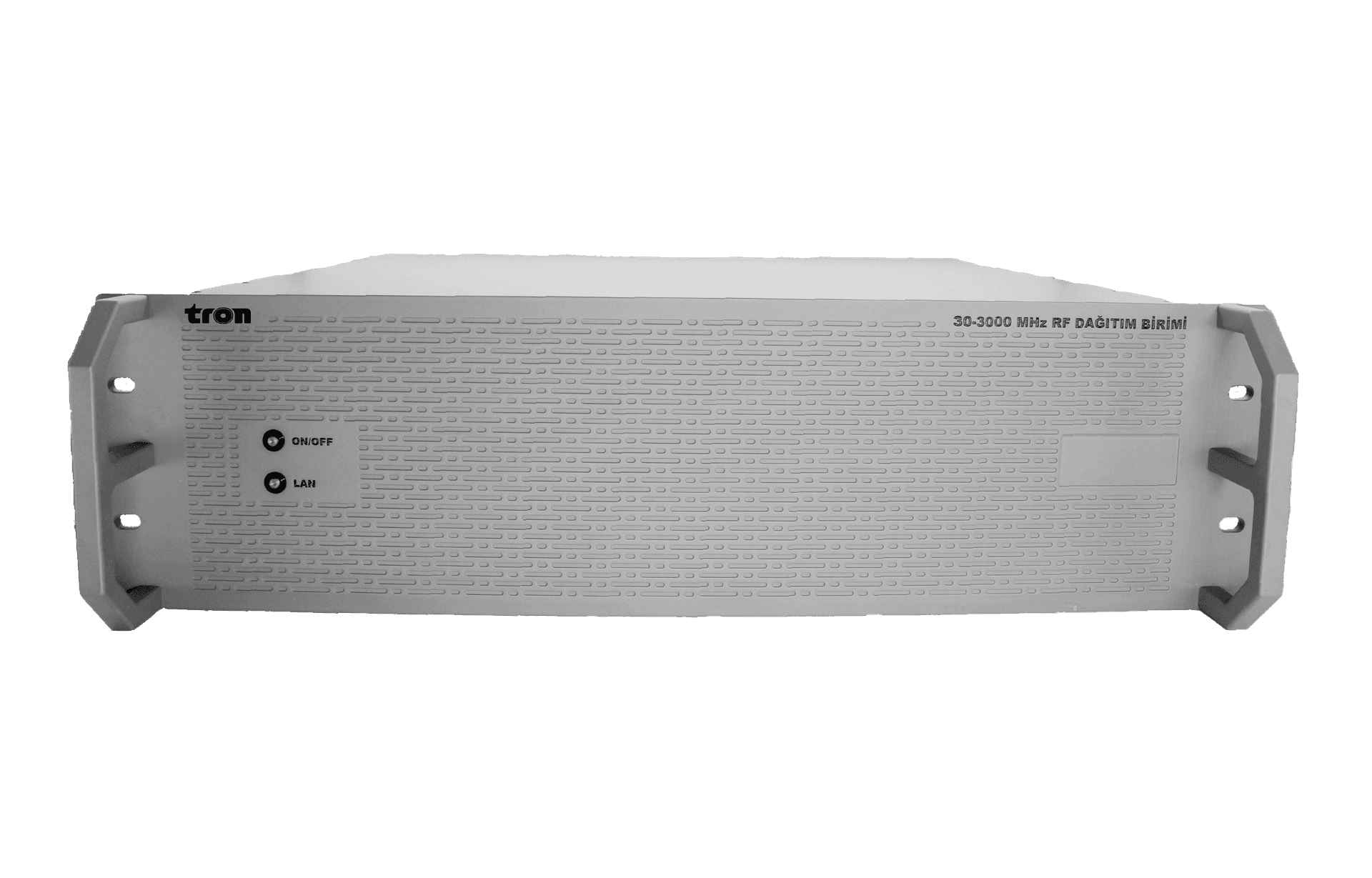

VHF/UHF Hybrid RF Switch Matrix & Multicoupler

TRFMC-3000-24-5 is a high-performance hybrid RF switching matrix and distribution unit designed for demanding direction-finding (DF) and RF monitoring applications. Covering the 30–3000 MHz frequency range, it features 5 RF inputs and 24 RF outputs, enabling flexible routing of antenna signals across multiple wideband receivers. All input signals can be filtered and amplified as required, then simultaneously delivered to every output with exceptional precision. With its switchable low-noise amplifier, the system ensures a low noise figure, high intermodulation suppression, and superior port-to-port isolation. Remote management via TCP/IP and continuous health monitoring through Built-In Test (BIT) provide reliable operation and ease of integration in mission-critical environments.

Features:

• 4 sub-banded 5 Antenna Inputs: (2 × 500-3000 MHz, 1 × 30-500MHz, 1 × 100-500MHz, 1 × 960-1215MHz) for max. selectivity
• Switchable RF amplifiers and filters
• Surge and overvoltage protection on each RF port
• High Port-to-Port Isolation: Ensures minimal crosstalk between outputs
• RF Blanking
• Compliant with DO-160G

Applications:

SIGINT, COMINT, Electronic Warfare
